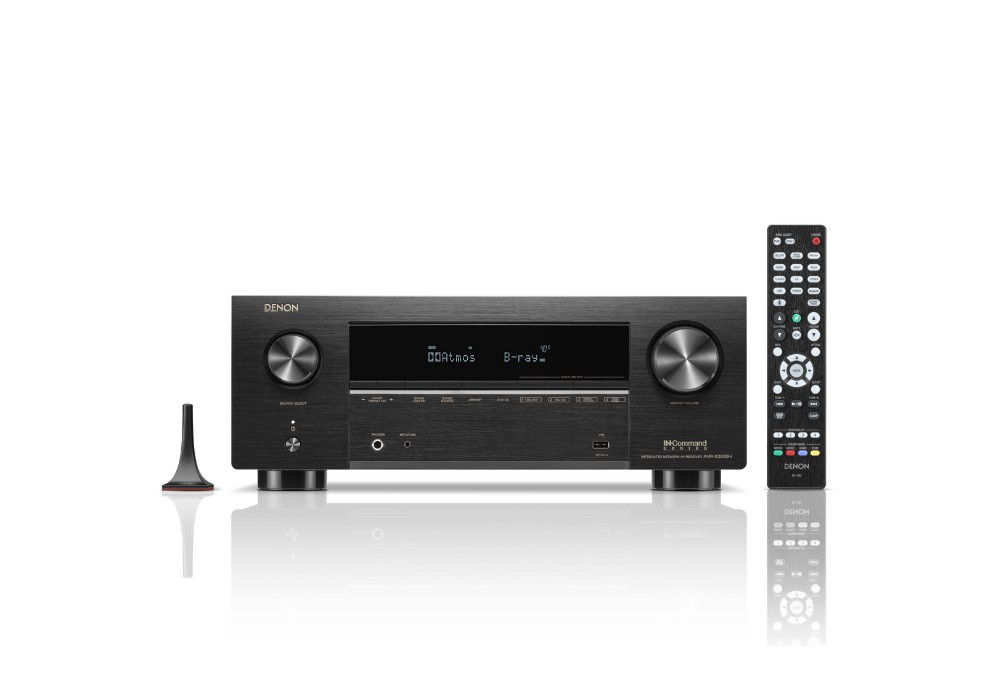

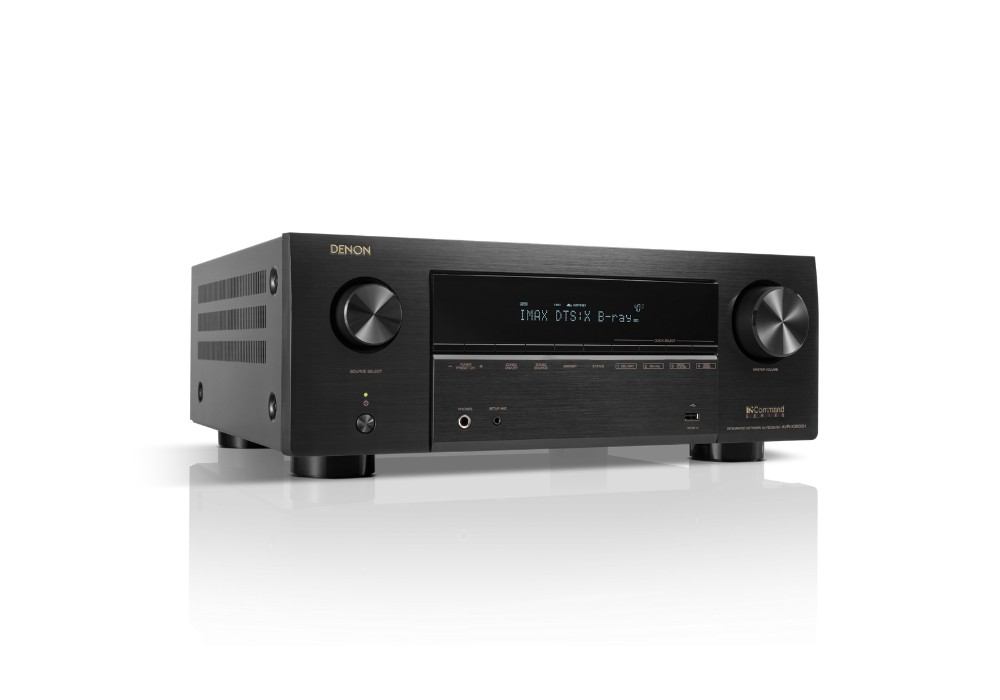

Denon AV Receiver AVC-X3800H


Product Details:


General

  • 9.4-channel AV receiver

  • Designed for advanced home theater and music systems

  • Expandable up to 11.4 channels with external amplification

Power & Amplification

  • Approximately 105 watts per channel (8 ohms, typical output)

  • Discrete high-current amplifier design

Audio Formats & Processing

  • Support for Dolby Atmos immersive audio

  • Support for DTS:X immersive audio

  • Support for Auro-3D immersive audio

  • IMAX Enhanced audio certification

  • Dolby TrueHD and DTS-HD Master Audio decoding

  • Dolby Surround and DTS Neural:X upmixing

  • Virtual height audio processing (e.g., Dolby Atmos Height Virtualization, DTS Virtual:X)

Room Calibration

  • Audyssey MultEQ XT32 automatic room correction

  • Adjustable EQ and calibration settings

  • Optional Dirac Live room calibration available (upgrade)

Video / HDMI

  • 8K video pass-through (up to 60 Hz)

  • 4K video pass-through (up to 120 Hz)

  • HDR support for HDR10, HDR10+, Dolby Vision, and HLG

  • 6 HDMI inputs

  • 3 HDMI outputs

  • HDMI eARC / ARC support

  • HDCP 2.3 compliance

Gaming & HDMI Features

  • Auto Low Latency Mode (ALLM)

  • Variable Refresh Rate (VRR) support

  • Quick Frame Transport (QFT)

Networking & Wireless

  • Built-in Wi-Fi

  • Built-in Bluetooth

  • HEOS built-in for multi-room audio streaming

  • AirPlay 2 support

  • Support for network streaming services and multi-room playlists

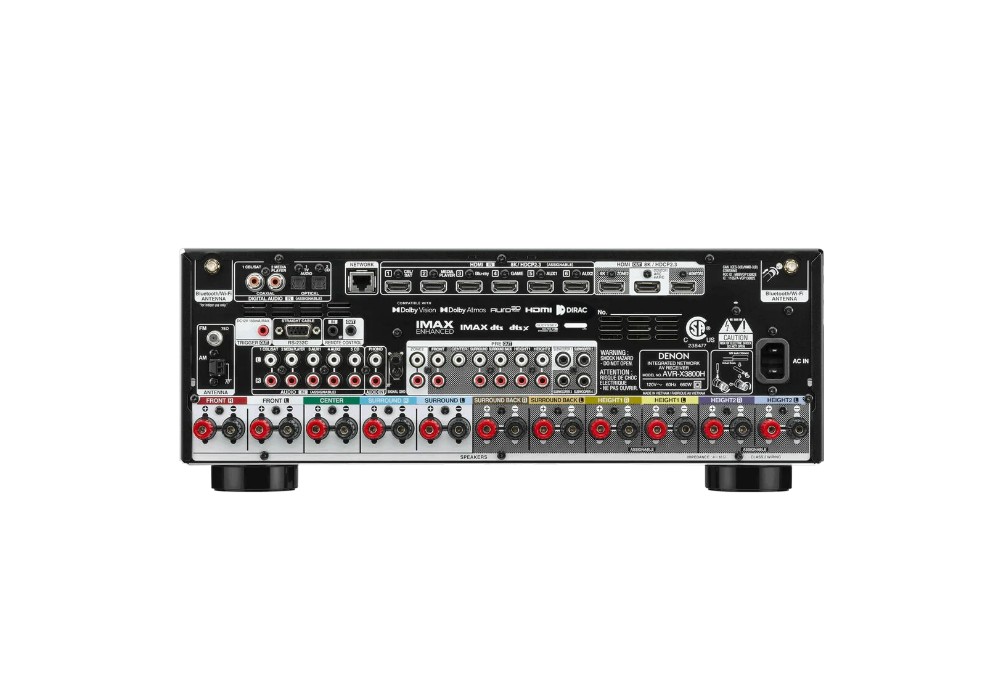

Inputs & Outputs

  • Multiple analog audio inputs (RCA)

  • Digital audio inputs (optical and coaxial)

  • USB input for media playback

  • Full 11.4 channel pre-outs for external amplification

  • Four subwoofer pre-outs for advanced bass management

  • Headphone output on front panel

High-Resolution Audio Support

  • High-resolution audio playback formats:

    • FLAC

    • ALAC

    • WAV

    • DSD audio

Control & Setup

  • On-screen setup assistant

  • Smartphone app control for settings and streaming

  • Voice assistant integration (Alexa, Google Assistant, Siri)

  • Pre-amp mode for custom system configurations

Physical / Miscellaneous

  • Full-size AV receiver form factor

  • Designed for cabinet or rack installation

  • Front panel controls and display
